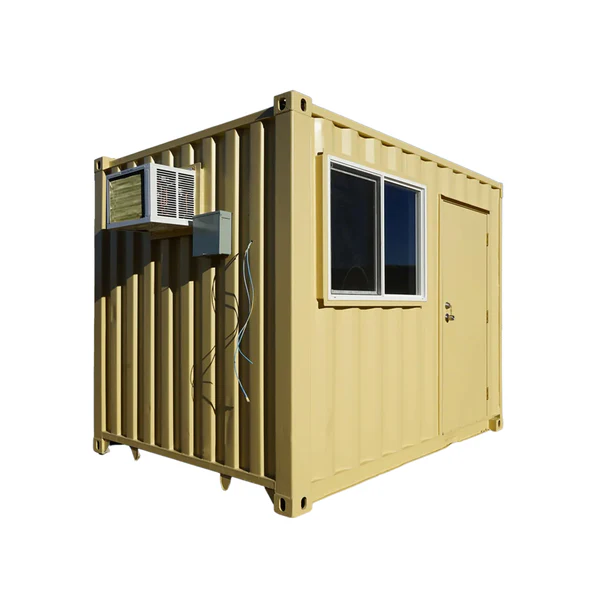

10ft. Ground Level Office Container

10Ft Ground Level Office Container

Dimensions: 10 feet (L) x 8 feet (W) x 8.5 feet (H) approx.

Structure:

Frame: MS (Mild Steel) tubular frame with fully welded joints.

Walls: External cladding with 1mm–1.2mm corrugated GI sheet; internal lining with 9mm–12mm laminated MDF or PVC panels; insulated with 50mm rock wool or thermocol.

Roof: Sloped MS/GI sheet roof with thermal insulation and water-sealant protection.

Flooring: 18mm waterproof plywood with vinyl or PVC tile finish; steel base frame.

Openings:

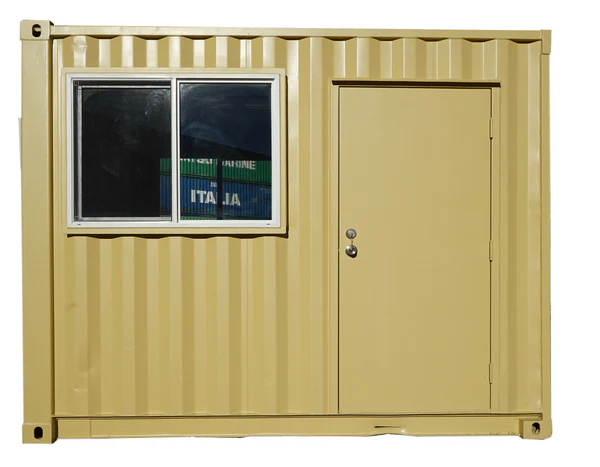

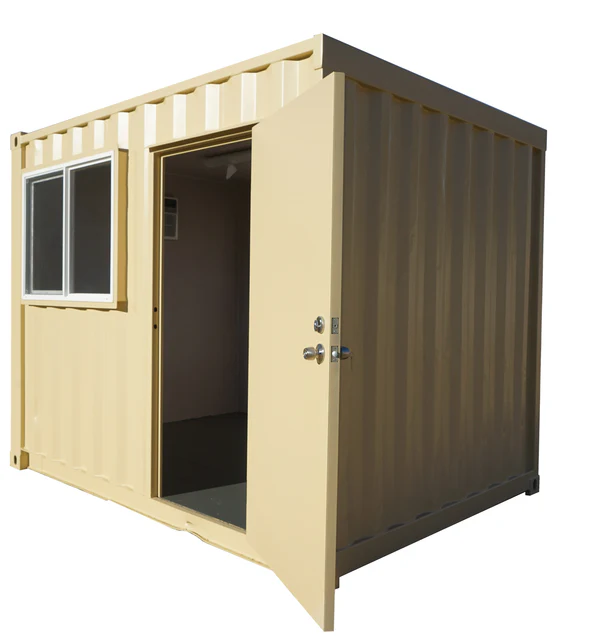

Door: One steel flush door with lock and handle set.

Windows: One or two aluminum/uPVC sliding windows with safety grill and mosquito net.

Electrical & Fittings:

Internal concealed wiring in PVC conduits.

LED tube lights (1–2 Nos), ceiling fan (1 No), 5/15A plug points (2 Nos), AC point provision.

Distribution board with MCBs and earthing arrangement.

Painting:

Exterior: Two coats of weatherproof synthetic enamel over red oxide primer.

Interior: Light-colored emulsion paint or pre-laminated panels.

Additional Features (Optional):

Worktable, chair, storage shelf, switchboard with nameplate.

Lifting hooks and forklift pockets for mobility.
